DESIGNED AND ASSEMBLED IN SUNNY SOUTHERN CALIFORNIA

See what others are saying about SpeakerPower Amps in the News section

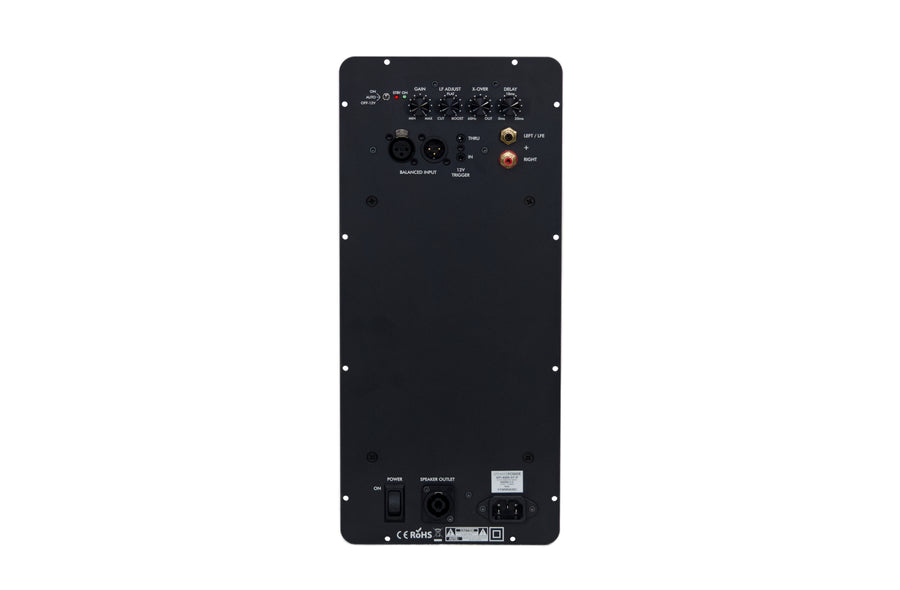

Home Theater Models
spec sheets under Technical tab

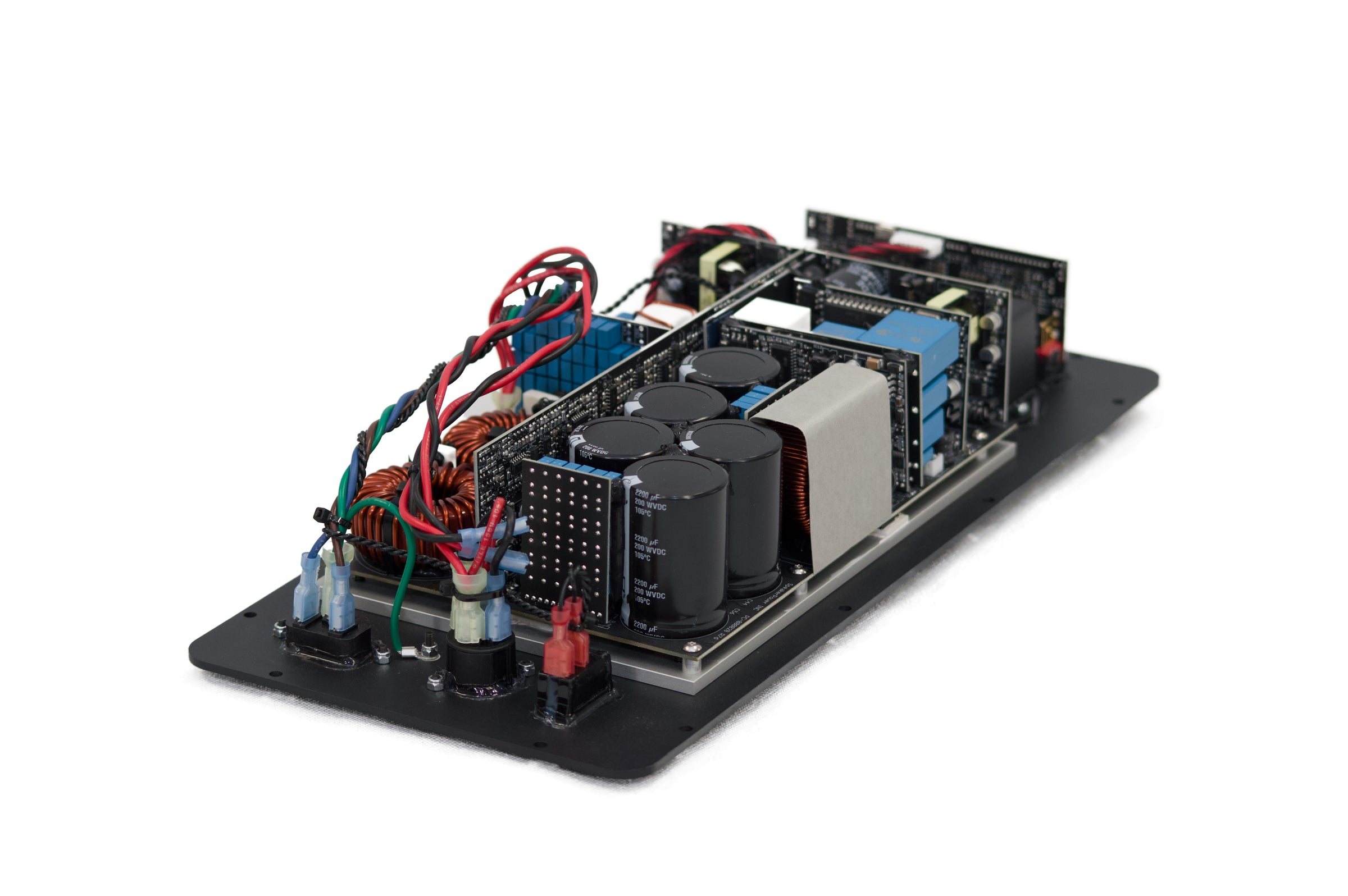

​SpeakerPower subwoofer amplifiers are uniquely designed for long term high power output at extremely low frequencies to meet the demands of synthesized bass and explosive special effects for cinema and music. High efficiency ensures cool running and reliability. State of the art power supply and class D amplifier technology deliver unsurpassed sonic performance and long-term reliability Designed for full time 4 ohm operation, the high power output can be used to fully drive parallel woofers economically in large systems.
Features:
•    Auto On with signal present
•    12V trigger

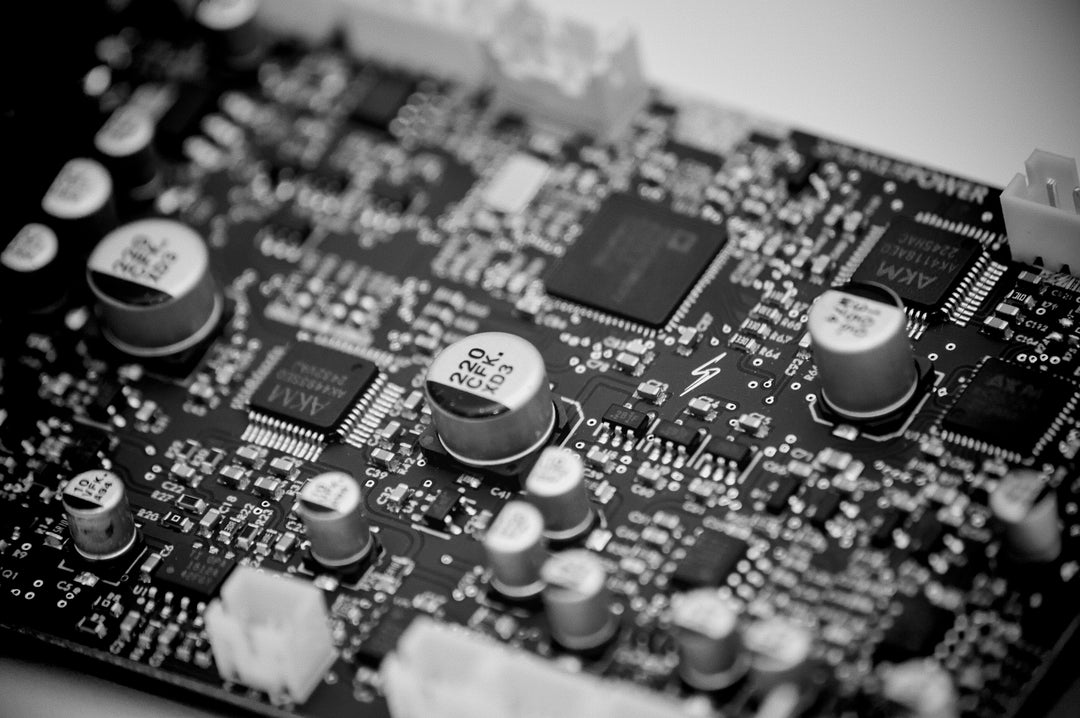

•    Powerful DSP for manufacturer settings of limiters, equalization, high pass filter etc.
•    4 DSP programmable rotary controls for users. Typical functions assigned are; Volume, Low Frequency equalization, Crossover, Delay
•    Full bridge outputs for no current pumping
•    Power specified at low frequencies where you need it.
•    State of the art modulation and feedback networks for low distortion and invariant frequency response with load.
Specifications

Country of manufacture: USA
Protection: Thermal, DC, turn-on bursts, subsonic, incorrect loads, clipping elimination
Indicators: Power (green), Standby  (red)
Connectors: 2 x RCA summing, XLR input and looping output. IEC C18/C13 AC mains
Warranty: Three years parts and labor



​

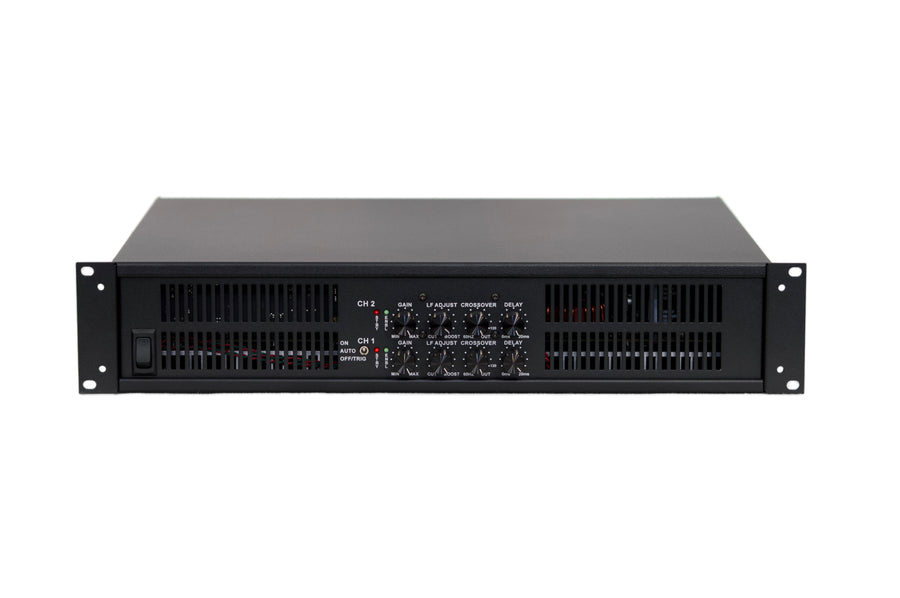

New Pro Rack Mount Models

Features

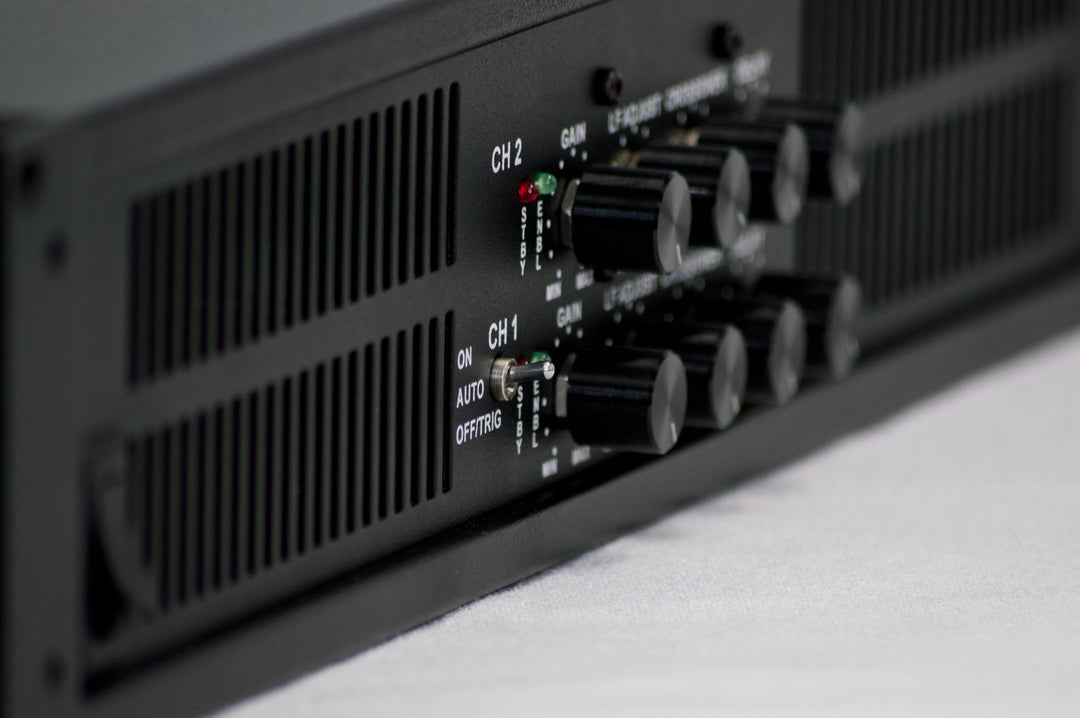

  • Front Panel Volume controls, LEDs for Power, Signal Present, Clip Protect
  • Rear Panel XLR Inputs and Outputs, Speakon outputs, POwercon AC input
  • Data port for connection to external DSP and Remote monitoring
  • Phoenix connector for remote standby.
  • Dual mono construction. Full power all the time.
  • Full bridge outputs for no current pumping
  • Power specified at low frequencies where you need it.
  • State of the art modulation and feedback networks for low distortion and invariant frequency response with load.
SP2-12000





SP2-12000

SP2-6400

SP2-8000

SP2-4800

Rated power 2 x 2 ohms

6000W per ch both driven



4000W per ch both driven



Rated power 2 x 4 ohms

3800W per ch both driven

3400W per ch both driven

2600W per ch both driven

2400W per ch both driven

Rated power 2 x 8 ohms

2000W per ch both driven

2000W per ch both driven

1300W per ch both driven

1300W per ch both driven

Maximum voltage no load

126VAC

126VAC

109VAC

109VAC

AC Mains voltage

208-240VAC 50/60 Hz

208-240VAC 50/60 Hz

120VAC 50/60 Hz

120VAC 50/60 Hz

Rated power 2 x 2 ohms

3000W per ch both driven







Rated power 2 x 4 ohms

2150W per ch both driven

2000W per ch both driven





Rated power 2 x 8 ohms

1200W per ch both driven

1200W per ch both driven





Maximum voltage no load

112VAC

112VAC





AC Mains voltage

120VAC 60 Hz

120VAC 60 Hz





Frequency response

5Hz-20Kz +/- 1.5dB

5Hz-20Kz +/- 1.5dB

5Hz-20Kz +/- 1.5dB

5Hz-20Kz +/- 1.5dB

Input CMRR









Voltage gain

30dB

30dB

30dB

30dB

Crosstalk

>90dB

>90dB

>90dB

>90dB

Hum and noise

99dB A wtd ref full 8 ohm pwr





Output impedance

< 0.01ohm 20Hz-1KHz







Input sensitivity

2VRMS







Input impedance

40K ohms







1/8th output power AC draw

1130

690

1130

690

Idle power draw

40W

40W

30w

30w

Weight

22 lbs

22lbs

22 lbs

20lbs
