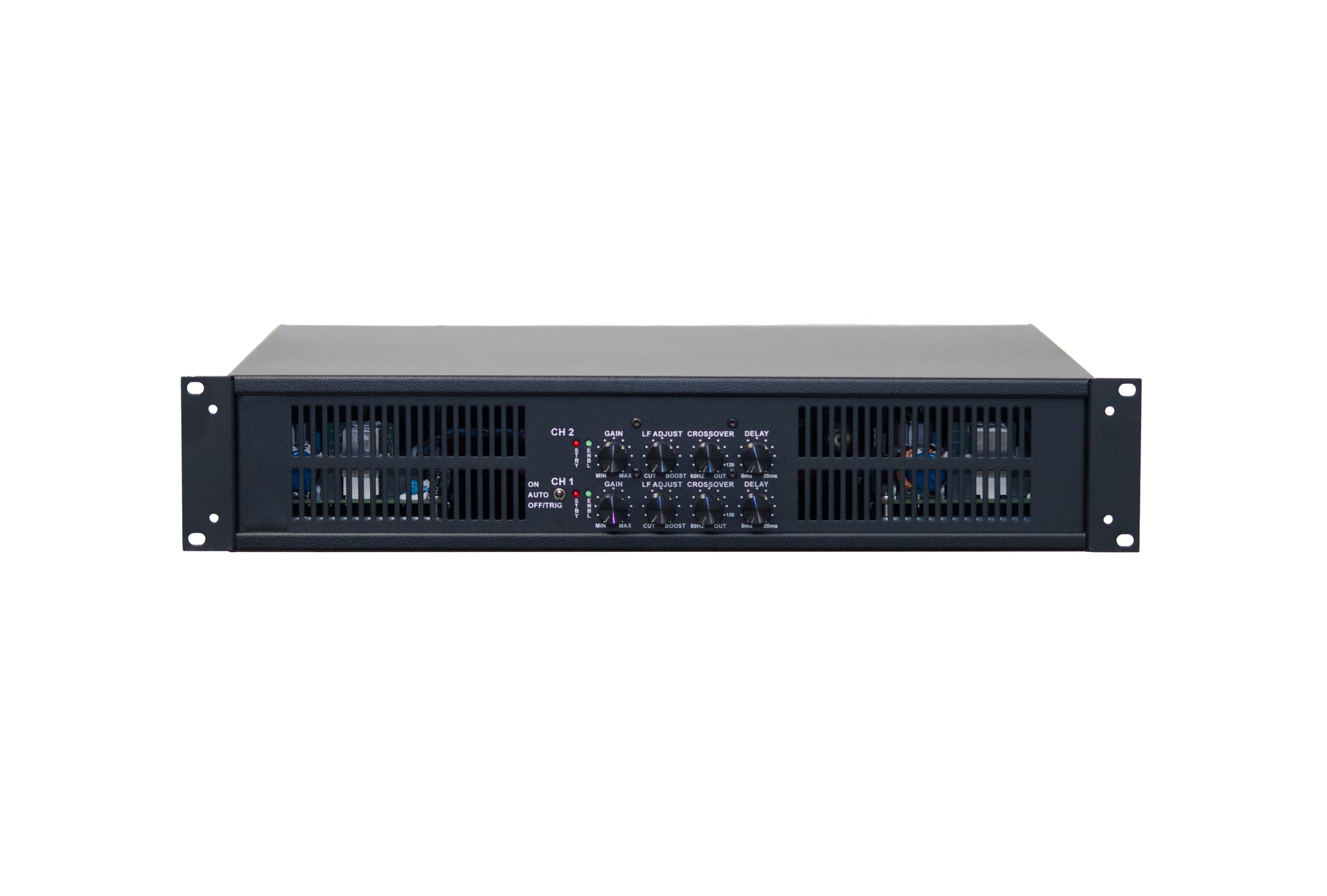

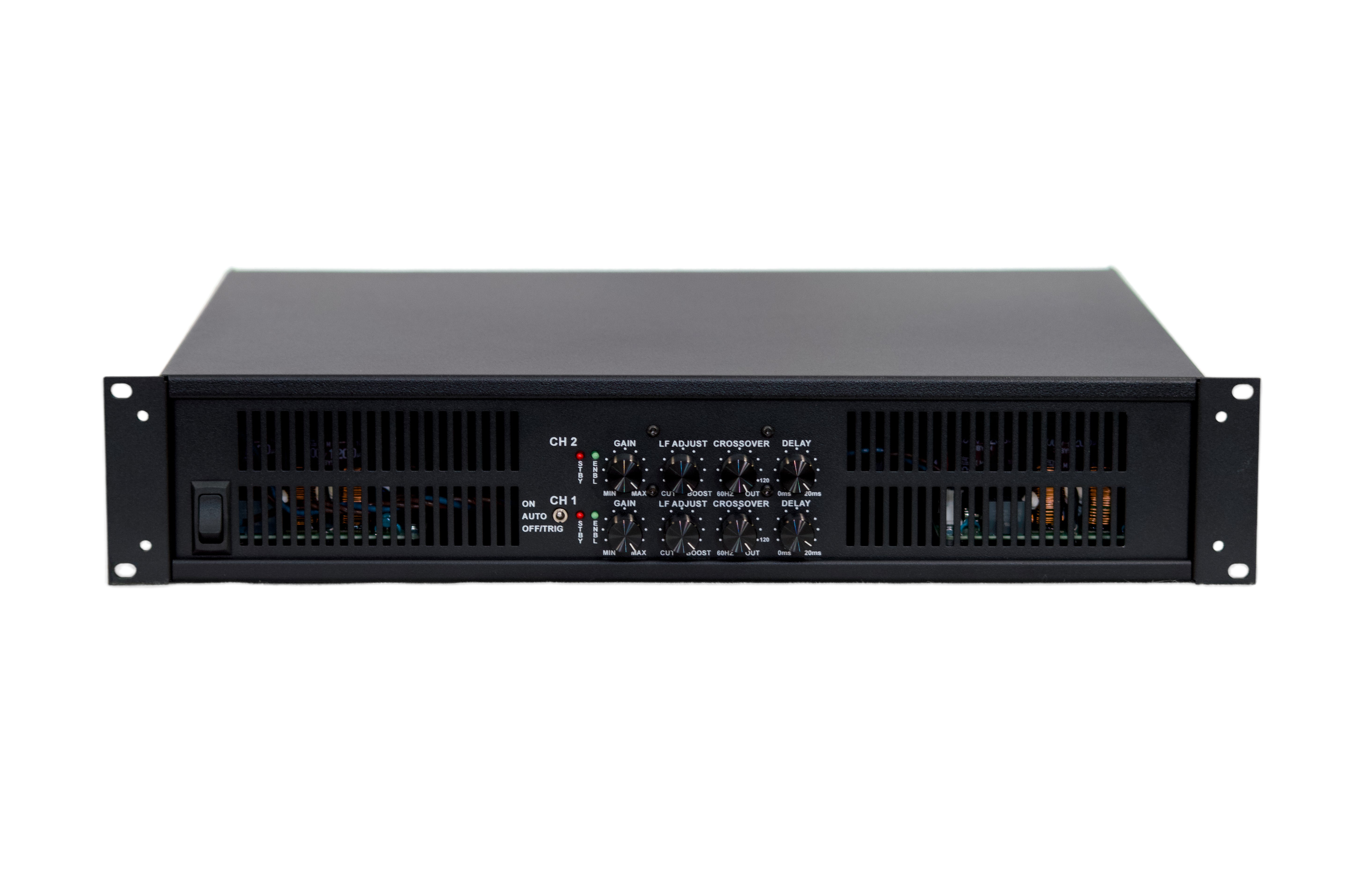

Dual Mono Block Subwoofer Rack Amplifier
Home Theater (HT)
19" Rack Mount - 2RU
Power Rating Per Channel:
STABLE at 2 ohms
1200W at 4 ohms
600W at 8 ohms
71 VRMS (100 Vp) at Hi-Z
Independent Subwoofer DSP Controls per channel
OVERVIEW:
- This product is uniquely designed to produce high power output at extremely low frequencies, making it perfect for meeting the demands of synthesized bass and explosive special effects in both music and cinema. Its long-term durability ensures excellent performance every time.
- Utilizing Full Bridge Outputs allows for consistent high-power output by eliminating current pumping.
- The DUAL MONOBLOCK architecture ensures consistent and powerful performance.
FEATURES:
3-MODE SWITCH
- ON - Amplifier ON
- AUTO - Signal Sense, Amplifier ON with signal (20 min. timeout)
- OFF/TRIG - Amplifier OFF, 12V TRIGGER enables amp

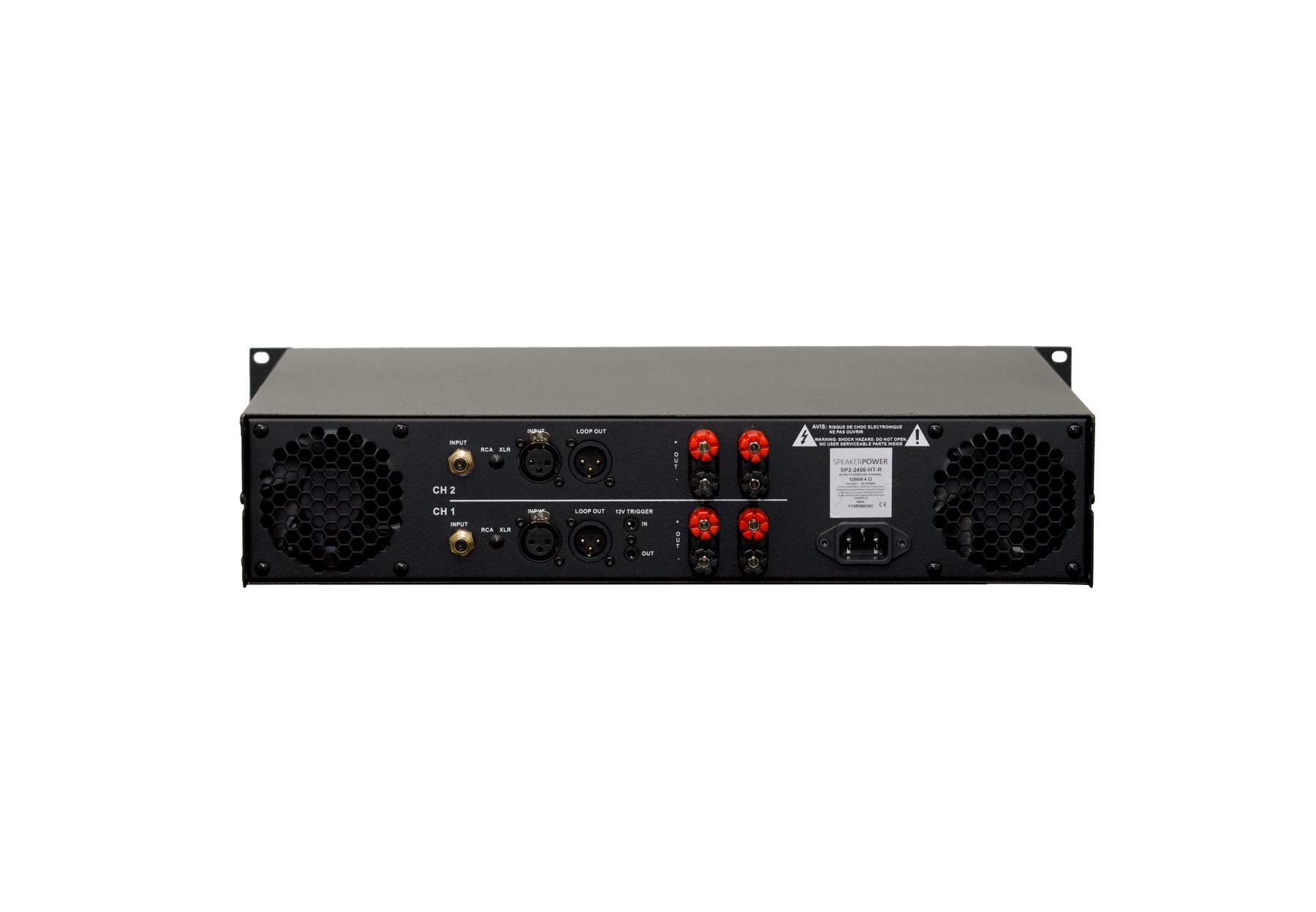

CONNECTIONS
- 3.5mm minijack 12V TRIGGER (IN / THRU)
- RCA (Single-ended) per channel
- XLR (Balanced) with Looping out (THRU) per channel
- IEC C13 AC mains connector
- Two paralleled binding posts (5-way, up to 12AWG) per channel
LED INDICATION
- GREEN - ON, Amplifier ready to pass signal
- RED - STBY, Amplifier is in low-power standby
ROTARY CONTROLS
- GAIN - 0dB (MAX) to MUTE (MIN), 316mV input sensitivity at MAX GAIN
- LF ADJUST - 25Hz Peaking Filter ("Bass Boost", CUT-12dB, BOOST+12dB)
- CROSSOVER - 60Hz to OUT (500Hz)
- DELAY - 0ms to 20ms
SPECIFICATIONS:
- AMPLIFIER TOPOLOGY CLASS-D
- POWER SUPPLY 1200W per Monoblock module
- FREQUENCY REPSONSE 20Hz to 500Hz (+-1.5dB)
- AMPLIFIER GAIN 45dB
- AC MAINS 100 - 265VAC 50/60Hz (Universal)
- STANDBY POWER DRAW 10W
- COOLING EXTRUDED ALUMINUM HEATSINK per module
- FANS TEMPERATURE ACTIVATED, turn on at 175F (80C) internal
- INPUT SENSITIVITY 316mV (at MAX GAIN)
- INPUT IMPEDANCE 10K (unbalanced) / 20K (balanced)
- OUTPUT IMPEDANCE <0.01 ohm 20Hz-500Hz
-
DIMENSIONS
- HEIGHT 3.5 in. ( 88.9 mm) - 2 RACK UNITS (2RU)
- WIDTH 19 in. (482.6 mm)
- DEPTH 14.5 in. (368.3 mm)
- WEIGHT 18 LBS (8.16 kg)
POWER DEDICATED AT LOW FREQUENCIES

FEEL THE DIFFERENCE
IN CINIMATIC EXPLOSIONS
Our world-class subwoofer amplifiers reach down to 5Hz
